These are the West 4700 1/4 Din & 6700 1/16th Din Over temp Controllers, their features are: Universal Inputs (Thermocouple, RTD, DC Linear), Universal Power Supply 90 - 264 VAC 50/60 Hz., High Accuracy +/- 1 LSD, UL, Recognition & Canadian UL (File # E160863), Front Panel Sealed to IP65/NEMA 4, Fast Sample Rate of 4 times per second, Unit is Programmable to be a Hi or Lo Limit Control.

West 4700 & 6700 Over temp Controllers

If you need Literature for this item download the following file West 4700.pdf

If you need Literature for this item download the following file West 6700.pdf

1-800-932-2548

These are the West 4100 1/4 Din, 6100 1/16th Din & 8100 1/8th Din Process Controllers, their features are: Universal Inputs (Thermocouple, RTD, DC Linear, Universal Outputs (Relay/SSR or DC Linear), Universal Power Supply 90-264 VAC 50/60Hz, High Accuracy +/- .25% of Span +/- 1 LSD, Front Panel Sealed to IP65/NEMA 4 (6100 to IP66), Fast Sample Rate of 4 times per second, West Pre-tune and Adaptive Self-tune, RS-485 Serial Communications option (plug in card), Dual Set point option (plug in card), 24V AC/DC power supply option.

West 4100, 6100 & 8100 Temp Controllers

If you need Literature for this item download the following file West 4100.pdf

If you need Literature for this item download the following file West 6100.pdf

If you need Literature for this item download the following file West 8100.pdf

1-800-932-2548

This is the West 4400 1/4 Din Program Controller, it's Features are: Universal Inputs, Outputs and Power Supply, 128 segments available - free format (ramp, dwell, end or join), Programs 8 X 16 segments, Programs can be joined to create longer profiles, Remote and local program number select, run, hold and abort, Selftune on dwells, Automatic hold for dwells and ramps, Profile start from Process variable or Set Point, Independent cycling for each recipe, Run, Hold, Abort, Jump and X60 commands supported, Readable run time status messages, Power failure strategy, End of program output (relay), Computer configurable connection socket, Configurable alarm strategy, & Plug in output cards.

West 4400 Profile Controller

If you need Literature for this item download the following file West 4400.pdf

1-800-932-2548

This is the West 4200 & 8200 Response Assisted PID Temperature Controllers, they have been designed to dramatically reduce overshoot and improve setting times on start-up, setpoint changes and disturbances in almost any application. The RaPID controllers incorporate PID and fuzzy logic control which works automatically in the background. All the operator has to do to improve control is set up the controller in the normal way using West's simple pre-tune/self-tune and then activate the fuzzy logic by pressing the buttons on the front. RaPID stands for 'Response assisted PID', and is a unique fuzzy logic based algorithm which enhanced the traditional PID function by continuously reblending the P, I and D control building blocks on-line. Instead of learning from an event and reacting after it has happened (which is how self-tuning PID controllers work), the RaPID controllers can react as an event occurs, thereby improving the quality of control and speed of response. It also enables the controller to be nonlinear, recognizing concepts such as 'warmer', and 'faster' in the same way a control engineer would do when manually tuning a process.

West 4200 & 8200 PID Controllers

If you need Literature for this item download the following file West 8200.pdf

If you need Literature for this item download the following fileWest 4200.pdf

1-800-932-2548

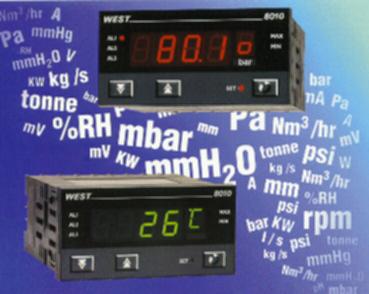

This is the West 8010 1/8 DIN Indicator, it combines state-of-the-art technology with a simple operator interface to provide clear identifiable information for any process. The advanced micro-processor control is proven technology, offering reliable, accurate indication in most environments. The 8010 will provide good visible indication for almost all applications, and is available in a choice of red or green LEDs. It can be configured for up to 30 different engineering units. This indicator also comes with several alarm options, and RS485 communications board can be fitted, offering full integration with most instrumentation, including industry standard MODBUS.

If you need Literature for this item download the following file West 8010.pdf

1-800-932-2548

This is the West 6600, Developed for the plastics industry, this temperature controller has been designed specifically to provide quality process control for the plastics industry, and features a special Heater Break Alarm function in addition to the advanced PID self-tune technology West controllers provide. The Heater Break Alarm function provides essential protection for both machinery and the quality of the product being produced in a typical plastic extruder. A heater failure normally results in adjacent heaters trying to overcompensate, causing inconsistent heating and possible product problems. The 6600 monitors the current input of each heater, and will therefore alarm on any failure as soon as it occurs.

If you need Literature for this item download the following file West 6600.pdf

1-800-932-2548

The West 6500 is a Quality Temperature Control For The Packaging Industry. Following research with end-users and OEM manufactures, West have developed the new 6500 temperature controller to meet the specific needs of the global packaging industry. Whether form, fill and seal, bag seal or shrink wrap, fast, reliable, cost-effective temperature control is essential in providing consistent result. The new West 6500 uses the latest proven technology from the process industry to get on control quicker and stay there. It has a simplified operator interface which makes it easy to use, set-up and support, providing quality control at an affordable price.

If you need Literature for this item download the following file West 6500.pdf

1-800-932-2548

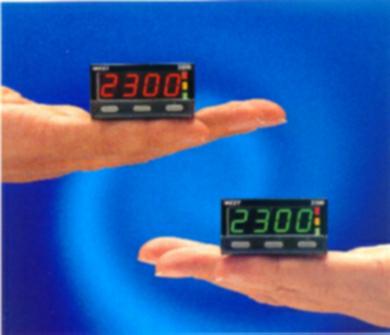

Quality Temperature Control in a 1/32 DIN Package

The West 2300 is a 1/32 DIN process controller designed to offer users a smaller controller without sacrificing functionality. A number of features make the 2300 one of the simplest process controllers to use. The Large 4 digit operator display area, available in red or green, comes with three additional colored indicators so you can easily read control, alarm, or configuration status.

If you need Literature for this item download the following file West 2300.pdf

1-800-932-2548
