PDS-360 Ultrasonic Open-Channel Flowmeter

Standard Features

2 Line, 20 Character alphanumeric LCD display with LED backlighting Display GPM, MGD, DEPTH, TOTAL, PERCENT TEMPERATURE, DATA LOG and all programmed variables Fully programmable from front panel 0-10VDC and 4-20mA outputs Integral Flume and Weir Equations Two programmable sampler/totalizer pulse outputs Temperature Compensation Two set point alarms with programmable ON and OFF settings Menu driven programming with Pass Code protection Data Logging 31 individual totalizers for daily flow totals PVC Corrosion Resistant Sensor with 5 foot cable NEMA 4X Corrosion Resistant Fiberglass enclosure with clear hinged cover.

Download Literature on this Product

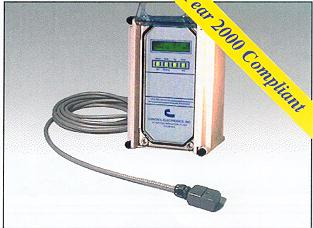

CPS-460 Ultrasonic Doppler Flowmeter

Standard Features

2 Line, 20 Character alphanumeric LCD display with LED backlighting Display GPM, MGD, DEPTH, TOTAL, PERCENT TEMPERATURE, DATA LOG and all programmed variables Fully programmable from front panel 0-10VDC and 4-20mA outputs Integral VALVE CONTROL Function Two Programmable pulse outputs Two programmable Alarm outputs Adjustable Damping of outputs Selectable FLOW TYPE Algorithms Voltage Transient/Surge Protection PVC, Corrosion Resistant Sensor Head with 20 foot PVC Coated Flexible Steel Cable NEMA 4X, IP65 Corrosion Resistant Fiber Glass Enclosure with Clear Hinged Cover System Test Modes 31 Day Data Logged Summary Detailed Data Logging of Pump Cycles.

Download Literature on this Product

ERS-560 Ultrasonic Level Monitor

Standard Features

2 line, 20 character alphanumeric LCD display with LED backlighting Display LEVEL INCHES, LEVEL FEET, GALLONS, PERCENT, TEMPERATURE, DATA LOG and all programmed variables Fully programmable from front panel 0-10VDC and 4-20mA outputs Integral Tank Shape Equations Temperature Compensation Four Set points alarms with programmable ON and OFF settings Menu driven programming with Pass Code protection Data Logging 31 Daily logging of AVG LEVEL, MIN/MAX and time of occurrence PVC Corrosion Resistant Sensor with 5 foot Cable NEMA 4X Corrosion Resistant Fiberglass enclosure with clear hinged cover.

Download Literature on this Product
